indoor
Design U.T. Egoluce

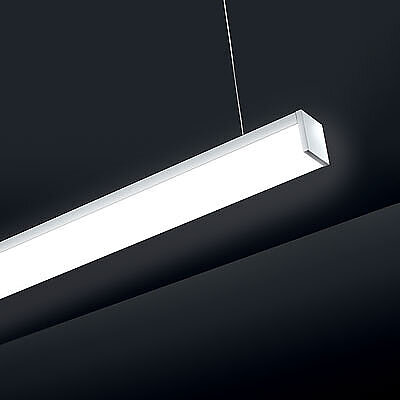

Linear suspension lamp with diffused light with white painted aluminum body, satin methacrylate diffuser, ABS end caps, 250 cm transparent coaxial cable and 15W/m and 180 LED/m circuit with CRI>90. Extra System can be made in different modular lengths from 103 cm up to 303 cm and is prepared for multiple compositions. The fixing kit is supplied with the lamp while the ceiling rose with integrated ballast is to be ordered separately. Ceiling roses with dimmable power supplies with PUSH, 1...10V, TRIAC or DALI control are also available. The choice of ceiling rose is determined by the sum of the wattages of the individual lamps used in the system. The lamp with a simple and essential design is designed to provide continuous and uniform direct light while respecting the highest visual comfort. The elegant line gives it an appearance that is well suited to any type of environment, from classic to modern interiors. Versatility and ease of use are the product's distinguishing features.
.01
White
| watt | code | finishes | 2700K | lm | 3000K | lm | 4000K | lm | |
|---|---|---|---|---|---|---|---|---|---|
| 103.00 cm | 15W | 1559.01 |
|
/XW | 1560 | /WW | 1650 | /W | 1840 |
| 128.00 cm | 18.5W | A1559.01/125 |
|
/XW | 1955 | /WW | 2068 | /W | 2306 |
| 153.00 cm | 22W | A1559.01/150 |
|
/XW | 2340 | /WW | 2475 | /W | 2760 |
| 178.00 cm | 26.5W | A1559.01/175 |
|
/XW | 2735 | /WW | 2893 | /W | 3226 |
| 203.00 cm | 30W | A1559.01/200 |
|
/XW | 3120 | /WW | 3300 | /W | 3680 |
| 228.00 cm | 33.5W | A1559.01/225 |
|
/XW | 3515 | /WW | 3728 | /W | 4146 |
| 253.00 cm | 37.5W | A1559.01/250 |
|
/XW | 3900 | /WW | 4125 | /W | 4600 |
| 278.00 cm | 41.5W | A1559.01/275 |
|
/XW | 4295 | /WW | 4543 | /W | 5066 |
| 303.00 cm | 45W | A1559.01/300 |
|
/XW | 4680 | /WW | 4950 | /W | 5520 |
