SPIRITS

Luminaire suitable for installation on normally flammable surfaces

Low-voltage luminaire with remote transformer.

1535

Select the finish and type of lamps to find out the corresponding code

	.01	White
	.01.30	White Silver leaf
	.02.29	Black Gold leaf

/WW	12.6W	2104lm	3000K	CRI>90
/W	12.6W	2255lm	4000K	CRI>90
/XW	12.6W	1955lm	2700K	CRI>90

Technical features

Light:	indirect
IP grade:	20
Net weight:	1,00 kg
Materials:	aluminium

Documentation

Data sheet Assembly Sheet 2D Model 3D Model

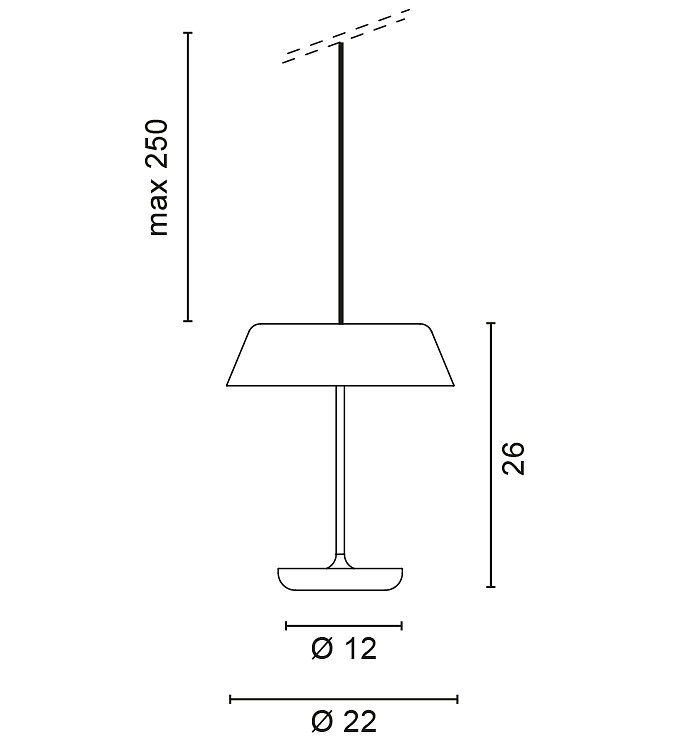

Indirect-light pendant luminaire with turned aluminum sheet diffuser, metal stem, methacrylate base/shutter disc and black 250-centimeter power cord.
The unusual positioning of the LED sources at the bottom of the fixture creates unexpected reflections and light projections.

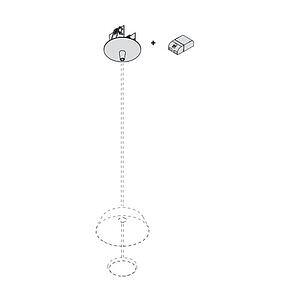

The ceiling rose with integrated driver is to be ordered separately depending on the composition to be created.

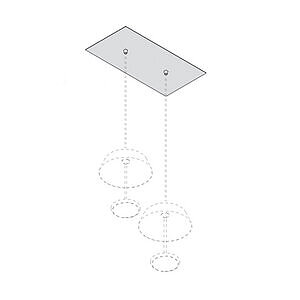

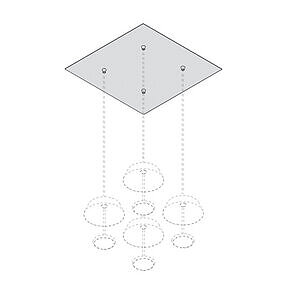

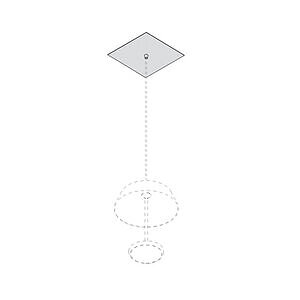

Solutions are available with one, two or four elements that can be placed side by side to create linear or grouped systems. A plate for attaching the single element to plasterboard ceilings is also available.
