EXTRA SYSTEM

Luminaire suitable for installation on normally flammable surfaces

Low-voltage luminaire with remote transformer.

1559

Select the finish and type of lamps to find out the corresponding code

.01

White

/W	15W	1840lm	4000K	CRI>90
/WW	15W	1650lm	3000K	CRI>90
/XW	15W	1560lm	2700K	CRI>90

Technical features

Light:	widespread
IP grade:	40
Net weight:	1,10 kg
Materials:	aluminum/methacrylate

Documentation

Data sheet Assembly Sheet LDT Files

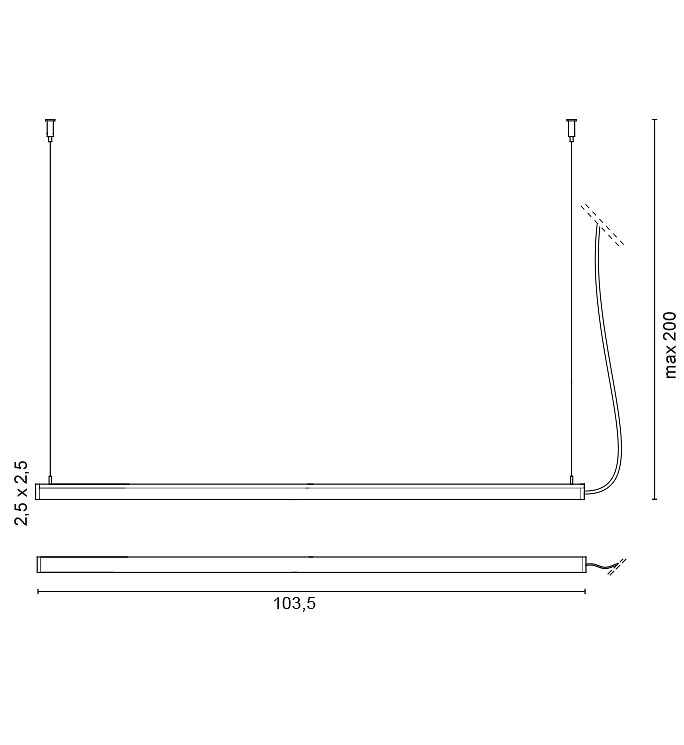

Linear suspension lamp with diffused light with white painted aluminum body, satin methacrylate diffuser, ABS end caps, 250 cm transparent coaxial cable and 15W/mt and 180 LED/mt circuit with CRI>90.
Extra System is available in various sizes from 103 up to 303 cm with modularity of 25 cm and is arranged to be installed in multiple compositions as well.
The fixing kit is supplied with the lamp while the ceiling rose with integrated driver must be ordered separately. Ceiling roses with dimmable drivers with PUSH, 1...10V, TRIAC or DALI control are also available.
The lamp with a simple and essential design is designed to provide continuous and uniform direct light while respecting the highest visual comfort.
The elegant line gives it an appearance that is well suited to any type of environment, from classic to modern interiors.
Versatility and ease of use are the product's distinguishing features.
