01 / 02
| .01 |
White |
|
| .02 |
Black |
|
| .85 |
Painted silver |
|
| .86 |
Painted gold |
|
| .87 |
Painted copper |
|
| .88 |
Bronze painted |
| /W | 54W | 6780lm | 4000K | CRI>90 | |
| /WW | 54W | 6060lm | 3000K | CRI>90 | |
| /XW | 54W | 5670lm | 2700K | CRI>90 |
| Light: | live |
| IP grade: | 40 |
| Net weight: | 3,80 kg |
| Materials: | aluminum/methacrylate |

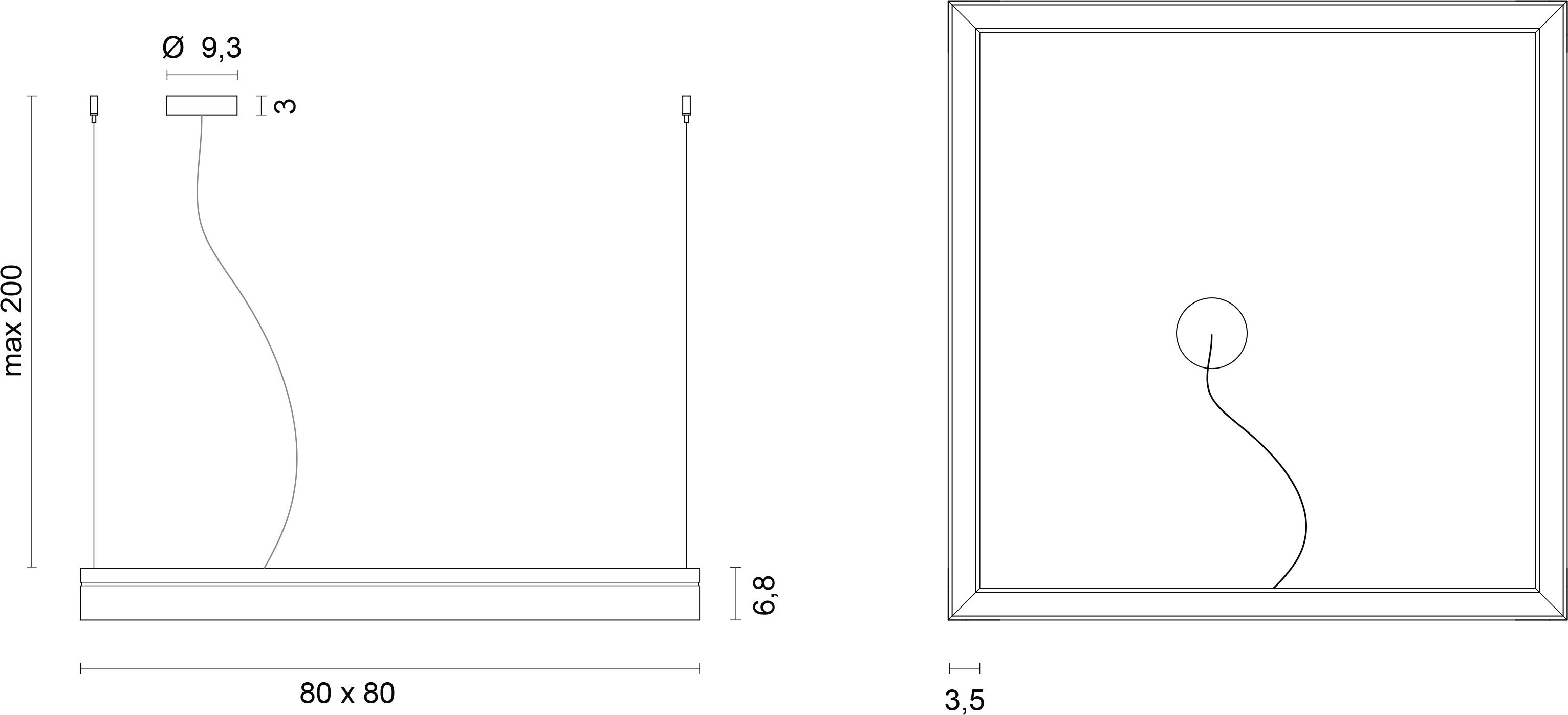

Direct-light suspension lamp with extruded aluminum body, sized to hold the driver, satin methacrylate diffuser, ABS ceiling rose, 18W/mt circuit and 180 LED/mt with CRI>90.
The absence of screws, the driver integrated into the structure and the cable attachment inside the bar make Rail Quadra an easy-to-install lamp.
Rail Quadra is designed as one large frame, a closed path of light that defines and emphasizes the space below.
On request it is available in other sizes, with double emission or with dimmable drivers for PUSH, 1...10V or DALI control.
