STAR ADJUSTABLE 2

Luminaire suitable for installation on normally flammable surfaces

Low-voltage luminaire with remote transformer.

6716

Select the finish and type of lamps to find out the corresponding code

	.01	White
	.02	Black

/W	5.9W	885lm	4000K	CRI>90
/WW	5.9W	836lm	3000K	CRI>90
/XW	5.9W	800lm	2700K	CRI>90

	18	Optical grade
	40	Optical grade
	60	Optical grade
	ST	Optical grade

Technical features

Light:	live
IP grade:	40
Net weight:	0,16 kg
Round recessed hole:	5,70 cm
Materials:	aluminium

Documentation

Data sheet Assembly Sheet LDT Files

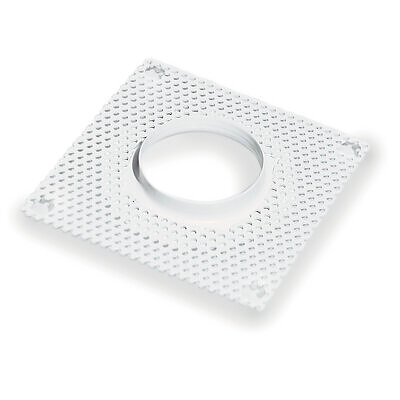

Adjustable mini trim recessed spotlight for accent or diffused lighting with integrated high performance COB LED source, aluminium body and round frame, polycarbonate internal reflector and supplied accessory for installation on plasterboard ceilings.
STAR ADJUSTABLE 2 is supplied with 2700K, 3000K and 4000K COB LEDs with CRI>90 and reflector with different optical apertures: 18°, 40° and 60°. The front lens, made of glass, can be transparent or frosted to diffuse the light.
The positioning of the light source, set back within the body of the spotlight, reduces direct glare while providing the charm and functionality of accent lighting.
The spotlight's small size and ease of installation make it ideal for use in a variety of contexts, and its simple design fits into any setting, from classic to modern interiors.
Operation of the spotlight requires a ballast to be ordered separately. Dimmable ballasts for PUSH, 1...10V, TRIAC or DALI control and emergency lighting control units are also available.
